Weber Mobile lift 2.5
Features
Electrohydraulic mobile 1 post lift for cars and vans
The mobile lift can be moved like a pallet truck and is suitable for lifting heavy vehicles up to a total weight of 2500 kg. The asymmetric swivel arms are telescopic. The stage has a ride height of only 110 mm. A floor mounting is not required.
- automatic locking and unlocking of safety locks
- electric lowering valve, lifting and lowering by push button
- a raised vehicle is perfectly accessible from three sides
- Vehicle doors facing away from the lifting column side can be opened without restrictions
- large carrying plates with rubber pad, double-height-adjustable by turning, easily removable
- plug-in tray plate raisers optionally available
- Stage by mobile kit with pallet truck Function easy to move and therefore flexible to use
- Column masking tape to protect the hydraulic cylinder
- Door protection rubber included
Technical specification
| Load capacity | 2500 kg |
|---|---|
| Lifting height max | 1890 mm |
| Over height | 110 mm |
| column height | 2620 mm |
| installation width | 1690 mm |
| required room height | 2720 mm |
| mass | 900 kg |
| engine power | 1,5 kW |
| rear support arm length | 360 - 670 mm |
| support arm length at the front | 660 - 970 mm |
| Lifting time | 65 Sec. |
| Electrical connection | 400 V / 3 Ph / 50 Hz |
| Color pillar | gray Ral 9006 |
| Color rails | blue Ral 5002 |

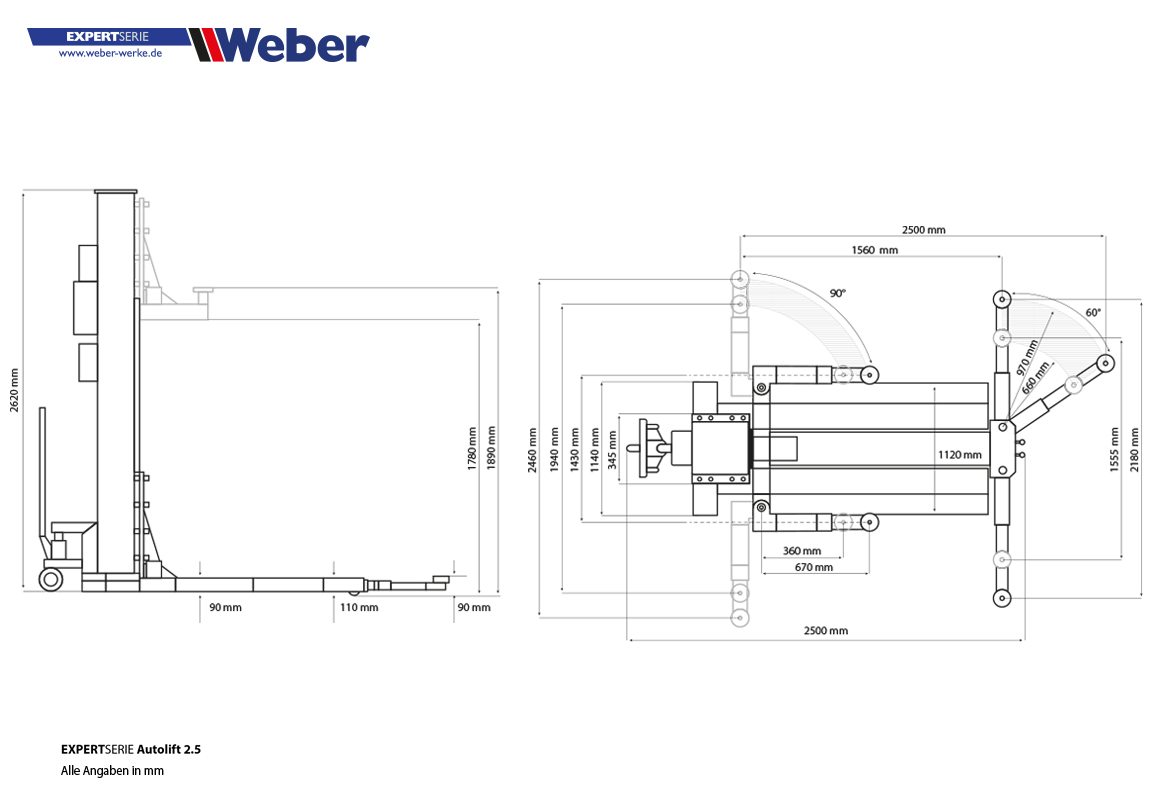

Technical drawing
